Overview

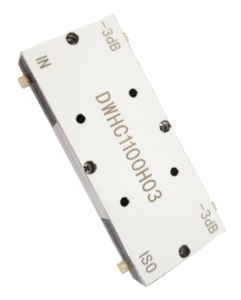

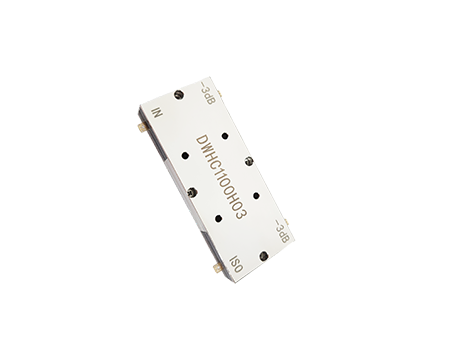

The DWHC1100H03 3dB hybrid coupler features an operating frequency range of 800-1400MHz, with core advantages including 20dB high isolation, insertion loss as low as 0.2dB, VSWR below 1.2, precise amplitude and phase balance, and power handling capability up to 800W. It strikes an ideal balance between the efficiency and stability of signal distribution and combining.
As a critical passive component in RF power amplifiers, it boasts a compact structural design, stable performance and strong compatibility. It requires no debugging and enables rapid integration, effectively meeting the requirements of signal distribution and combining in multiple fields such as wireless communications, radar, test and measurement, and industrial and military applications. This high-performance hybrid coupler combines professionalism and practicality, providing reliable support for the efficient operation of various RF systems.
Specifications
No. | Item | Value | Unit |
1 | Center Frequency | 800-1400 | MHz |
2 | Isolation | ≥ 20 | dB |
3 | Insertion Loss | ≤ 0.2 | dB |
4 | VSWR | ≤ 1.2 | |
5 | Amplitude Balance | ± 0.3 | dB |
6 | Phase Balance | 90 ± 3 | ° |
7 | CW Power | 800 | W |

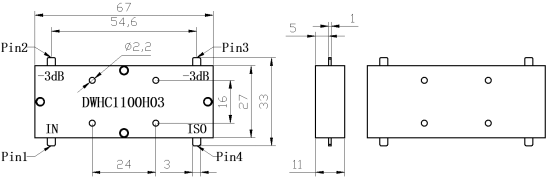

Product Dimensions
